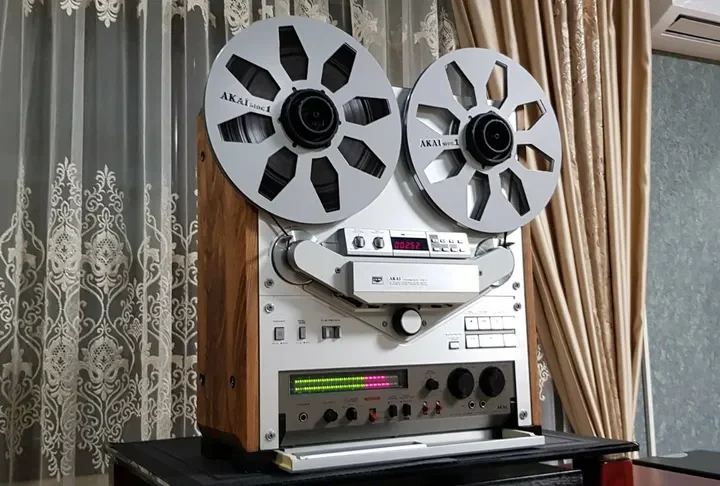

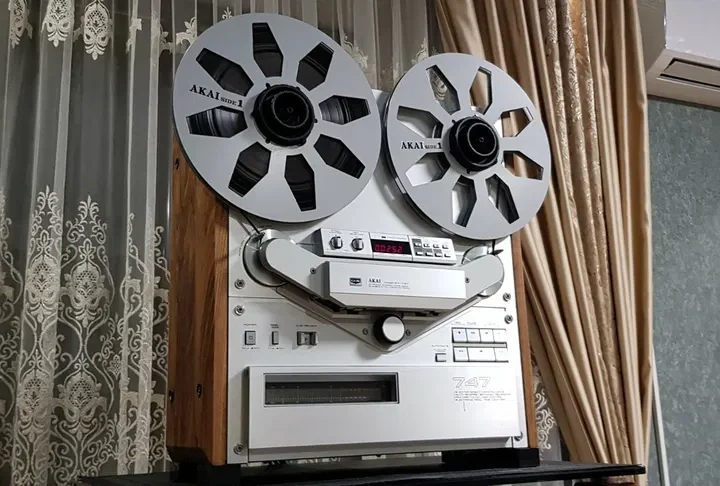

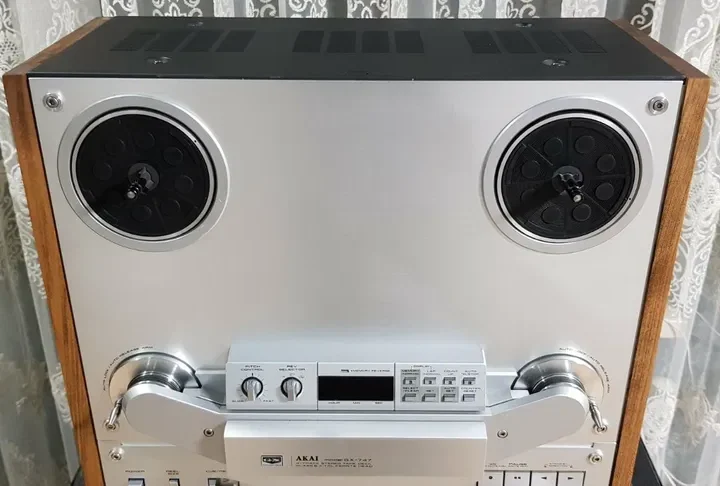

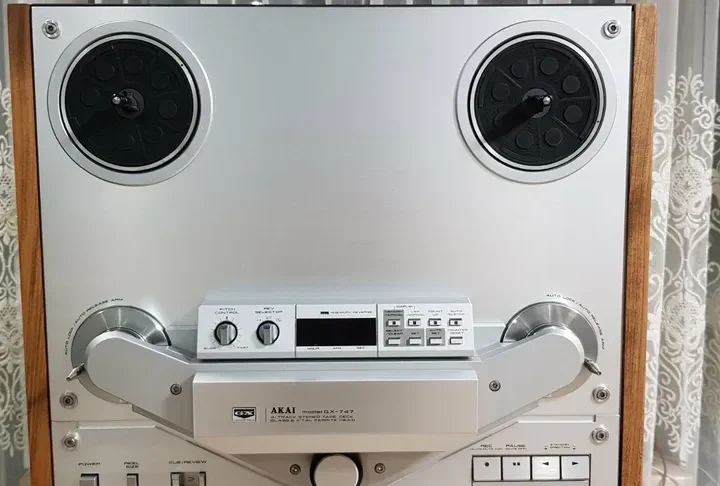

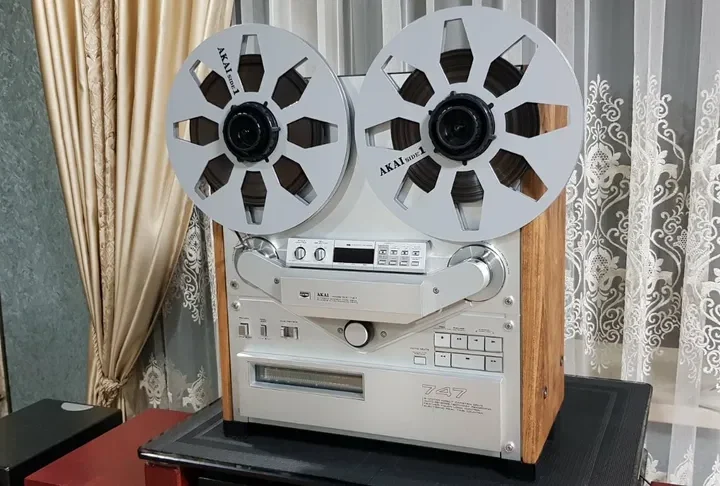

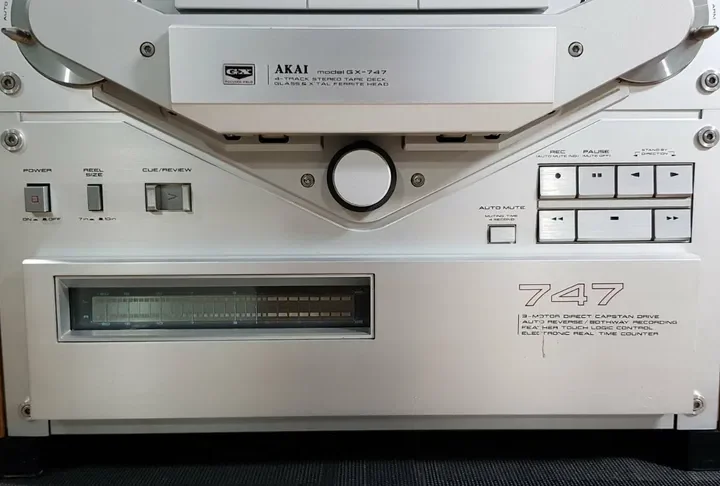

Akai GX-747

Fully working Akai GX-747 in good condition. Reels and nabs are not included in the kit.
Produced by Akai since 1983. This is undoubtedly one of the most advanced models from Akai, which cannot be compared with previous ones, either in electronic or mechanical characteristics. The GX-747 can be considered an improved version of the Akai GX-646. Operation is ensured by 3 motors, as well as installed 6 “GX” heads. The motor drive shaft has quartz stabilization. Accordingly, a new “EE” technology was used for film recording/playback, recording and playback function in reverse mode, 2-color LED signal level indicators (24 segments), “through channel” function, digital electronic counter with memory function, ability to adjust the bias current, speed adjustment, recording and playback timer.
It is possible to connect a remote control.
Track system: 4 Track 2 Channel Stereo System 1
Reel capacity: Up to 10 reel
Heads:
GX head for Recording x2
GX head for Playback x2
Erase head x2
Motors:
AC Servo motor for capstan drive x1
AC Eddy current motor for reel drive x2
Tape speed: 19 cm/s ±0.8%; 9,5 cm/s ± 10%
Wow & flutter:
Less than 0.03% WRMS, 0.07% DIN 45500 at 19 cm/s
Less than 0.04% WRMS, 0.09% DIN 45500 at 9,5 cm/s
Tape winding time: 75 sec. using 360 m (1,200 ft.) Tape
Frequency response:
25 to 33,000 Hz ± 3 dB at 19 cm/s
25 to 26,000 Hz ± 3 dB (0 VU)
25 to 25,000 Hz ± 3 dB at 9.5 cm/s
25 to 15,000 Hz 3 dB (0 VU)
Signal to noise ratio: Better than 65 dB at 19 cm/s DIN 45500
Harmonic distortion: Less than 0.4% at 19 cm/s
Input:
MIC: 0.25 mV (input impedance 5.0 kohms)
Required microphone impedance: 600 ohms
Line: 70 mV (input impedance 100 kohms)
Output:
Line: 0,775 V at 0 VU
Required load impedance: more than 20 kohms
Phone: l00mV
DIN:
Input: 2 mV (input impedance 10 kohms)
Output: 0.3 V required load impedance more than 20 khoms
Power requirements: 220V, 50 Hz switchable
Dimensions: 440x483x256 mm
Weight: 21 kg
